Burst Pressure Test Stand for Hydrogen Composite Pressure Vessels

  • For vessels up to 238 gallons (900L) with a max. burst pressure of 36,000 psi (2.500bar)
  • For vessels with nominal working pressure up to 10,150 psi (700 bar)
  • Test fluid is water
  • Maximator air driven hydraulic pump unit
  • Test stand located in sea freight container

Maximator Burst Test Stands facilitate the bursting of hydrogen composite pressure vessels, using water under ambient conditions. The tank will be pressurized up to burst or target pressure max 36,000 psi(max. 2.500bar). National and international regulations as well as customer specifications mandate batch testing to ensure performance and safety of the hydrogen composite pressure vessel.

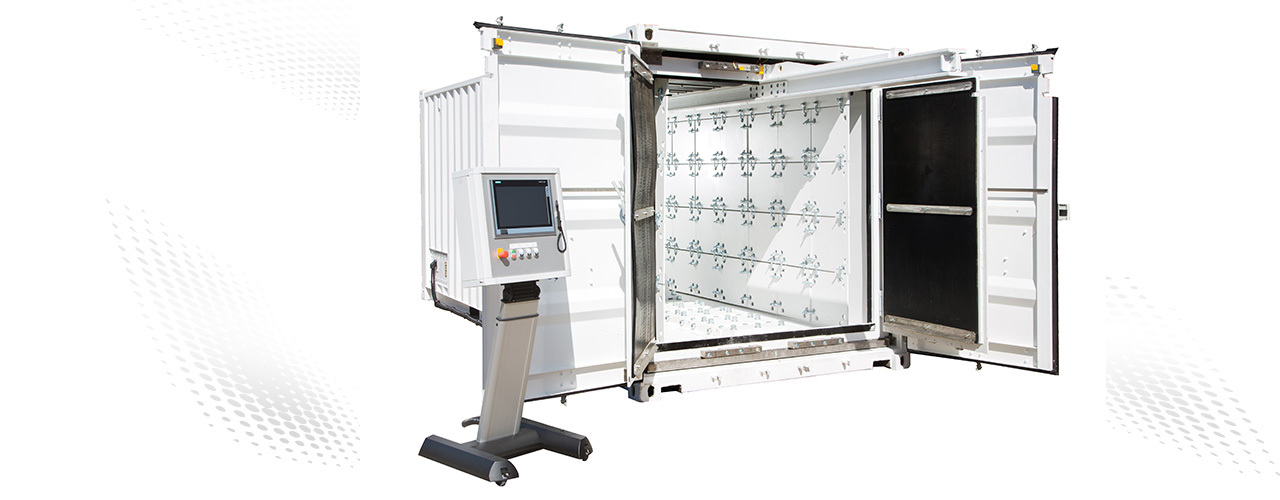

The Maximator Burst Test Stand is located in one sea freight container including tubular test chamber, Maximator air driven hydraulic pump unit and HMI (depending on request). We can also offer a lifting crane and a trolley system for the vessels.

Key Benefits

Each module can be purchased separately (e.g. burst test chamber)

  • Test sample volume: up to 238 gallons (900L)
  • Test sample pressure: 5075 psi or 10,150 psi (350bar or 700bar)
  • Test sample length: up to 157.5” (4,000mm)
  • Test sample diameter: up to 37.5” (1,000mm)
  • Test pressure: up to 36,000 psi (2.500bar)
  • Fluid: Water
  • Handling: manual
