The service representatives and engineers at Maximator US can help you determine the ideal solution for your high pressure valve needs. We serve the oil and gas, shale fracking, food handling and chemical industries, among others. Let us help you determine which high pressure valves are right for your needs.

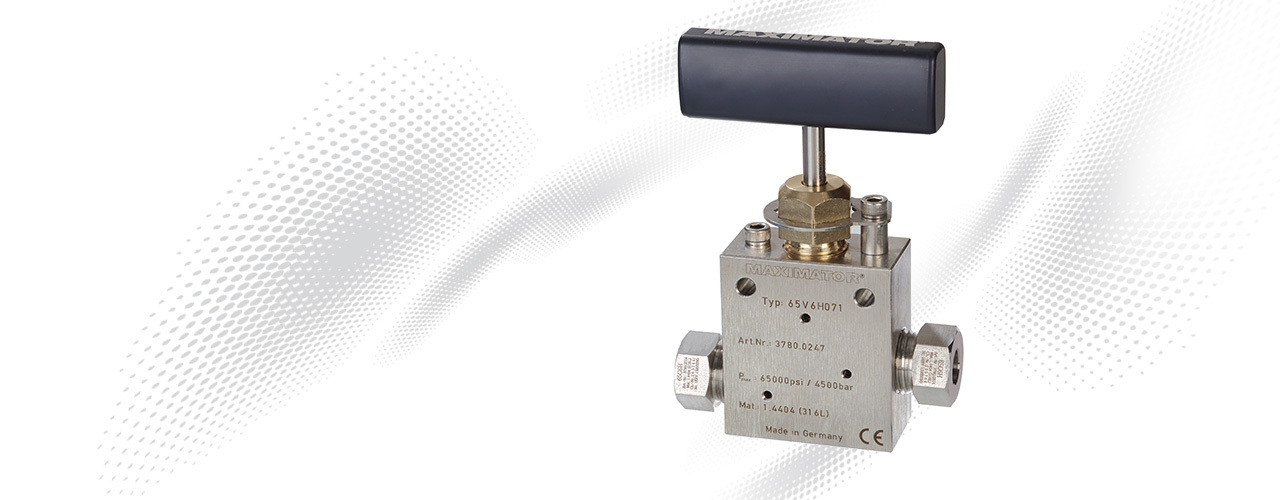

A key feature of the valves is the non-rotating stem which ensures a long life and high reliability. MAXIMATOR® high pressure valves with metal sealing have a high level of safety and reliability under adverse operating conditions.

The valves may be used with gas or liquid. Their traceability is ensured through extensively documented data (batch number, max. pressure, material number, type designation).

Each high pressure valve of the MAXIMATOR series comes complete with the collar and gland.

Technical data

Body material1.4404 (316 L)
Stem material17-4 PH (1.4542)
MediumMedium Compatibility Guide
Temperature-50˚ C up to +230˚ C
SealPTFE + Carbon
Connection4HF, 6HF, 9HF
OrificeUp to 0.078" (2mm)

Special features

  • High-quality valve body – 1.4404 (316 L)
  • Relief bore for absolute safety
  • Six different valve designs
  • Non-rotating stem

Special designs

  • Elongation for valve handles
  • Extreme temperatures
  • Special materials
