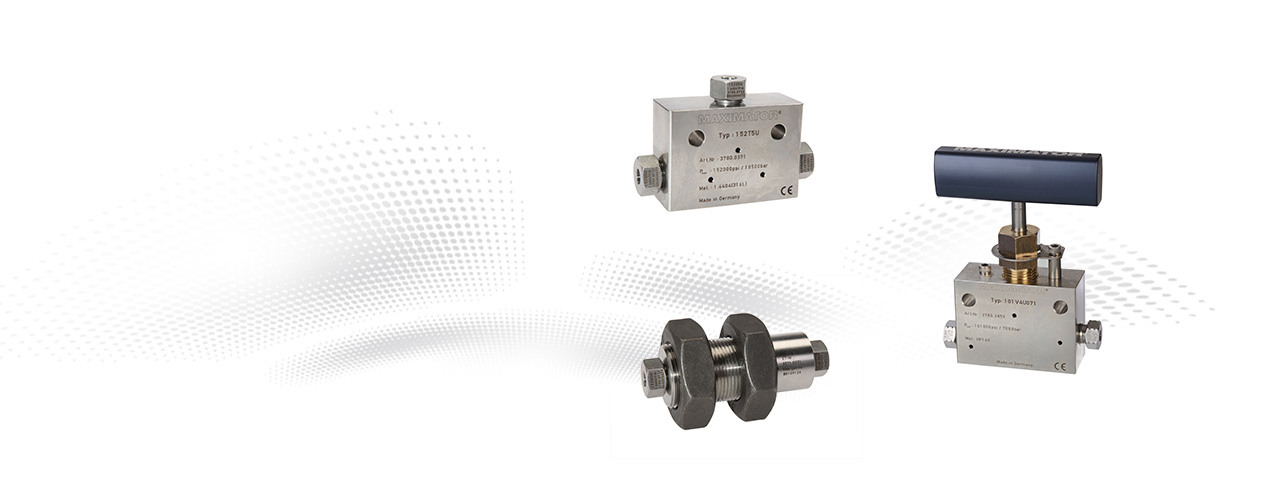

High Pressure Fittings

At Maximator US, we stock a wide range of high-pressure fittings for same day or next day shipment. These fittings are essential to complete high-pressure gas and liquid systems as highly reliable and safe engineered components. The integrity of any system is only as good as the weakest components. Maximator US fittings, along with our decades of experience in application engineering, will ensure that selection of the correct fittings will maintain the pressure, flow and duty requirements demanded by your entire system.

All fittings are supplied with collars and glands.

Anti-Vibration Collet Gland Assemblies

Maximator US anti-vibration collet gland assemblies are for use in applications where there could be extreme external mechanical vibrations or shock in tubing lines. These collet gland assemblies are interchangeable with standard medium-pressure coned and threaded tube connections.

In normal coned and threaded tube connections, any external mechanical loading on the tubing lines, valves, or fittings would be concentrated on the first thread of the tube. This can cause failure of the tube at this thinner cross-section. The anti-vibration collet gland assembly grips the tubing behind the connection, supporting the tube at the full cross-section and straight area, moving the loading away from the threaded area.

Technical data

Body material316 L (1.4404)
Collar material403F (1.4104)
Gland material316 L (1.4404)
Temperature-50˚ C to +150˚ C
Connection4FH, 6HF, 9HF
