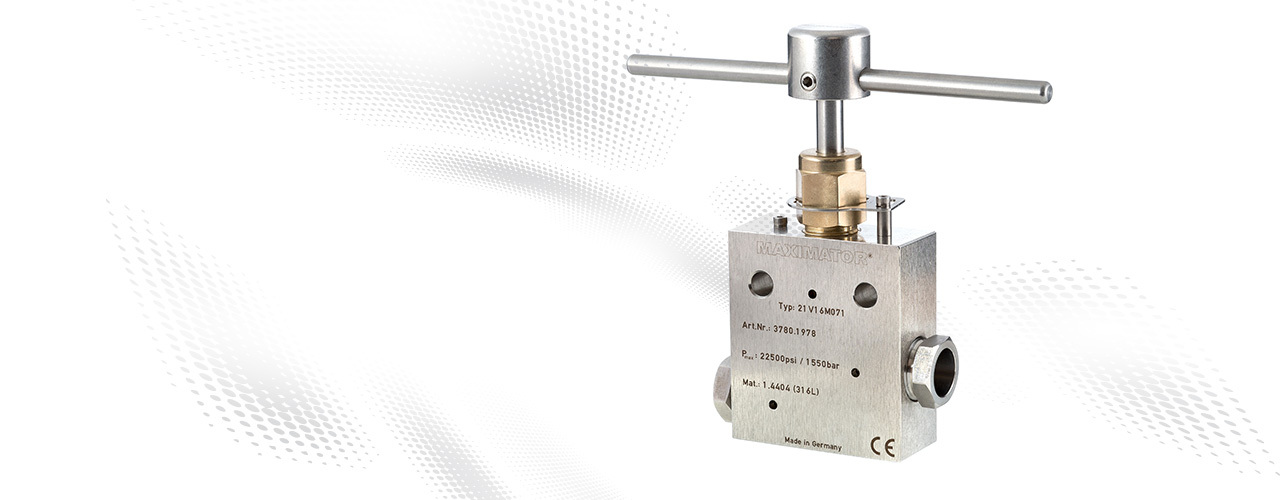

MEDIUM PRESSURE VALVES
MAXIMATOR valves of the 21V series have a cold-machined stainless steel body. Valve bodies are available in six different designs and can be equipped with a regulating stem.
A key feature of the valves is the non-rotating stem which ensures a long life and high reliability. MAXIMATOR medium pressure valves with metal sealing have a high level of safety and reliability under adverse operating conditions.
The valves may be used with gas or liquid. Their traceability is ensured through extensively documented data (batch number, max. pressure, material number, type designation).
Each medium pressure valve of the MAXIMATOR series comes with the collar and gland.
Technical data
| Body material | 316 L (1.4404) |
| Stem material | 17 - 4 PH (1.4542) |
| Medium | cf. Medium compatibility guide |
| Temperature | -50˚ C up to +230˚ C |
| Sealing | PTFE + Carbon |
| Connections | 4MF, 6MF, 9MF, 12MF, 16MF |
| Orifice | 0,11" - 0,56" (2,7 - 14,3 mm) |
Special features
- HIgh-quality valve body - 1.4404 (316 L)
- Relief bore for absolute safety
- Six different valve designs
- Non-rotating stem
Special designs
- Elongation for valve handles
- Extreme temperatures
- Special materials
