Increase air pressure where you need it.
Maximator air amplifiers are air-driven pressure boosters designed to increase plant or shop air pressure at the point of use. They provide higher-pressure air for workstations, pneumatic machinery, tools and other applications when available air pressure is insufficient.
Using the same compressed-air source for both operation and amplification, Maximator air amplifiers require no electrical power. Models are available in single-stage, single-acting and single-stage, double-acting configurations to address a range of pressure and flow requirements, with air pressures from 30 psi to 4,350 psi.
Why Air Amplifiers?
Increasing the pressure of an entire compressed-air system is not always practical when only one machine, workstation or process requires additional pressure. Maximator air amplifiers provide a point-of-use solution by increasing the available air pressure at the application.
Air amplifiers are well suited for applications that require intermittent higher-pressure air, including pneumatic equipment, air-operated tools, cylinders and injection molding equipment.
KEY BENEFITS
-
Multiple Pressure Ratios
2:1 to 30:1 ratios for different pressure requirements.
-
Single and Double Acting Configurations
Configurations to address different pressure and flow demands.
-
No Electrical Power Required
Uses compressed air for both operation and amplification.
-
Automatic Stall and Restart
Stops at stall pressure and restarts after a 1% pressure drop.
Choose the Right Air Amplifier
Maximator offers a range of single-stage air amplifiers in both single-acting and double-acting configurations. With pressure ratios from 2:1 to 30:1 and maximum rated pressures up to 4,350 psi, the product range provides options for different pressure and flow requirements.
Single-Stage, Single-Acting Air Amplifiers
Single-stage, single-acting models are available in 4:1, 5:1, 15:1 and 30:1 pressure ratios, with maximum rated pressures from 580 psi to 4,350 psi.
| Model | Pressure Ratio | Supply Pressure | Max. Rated Pressure | Flow Curve |

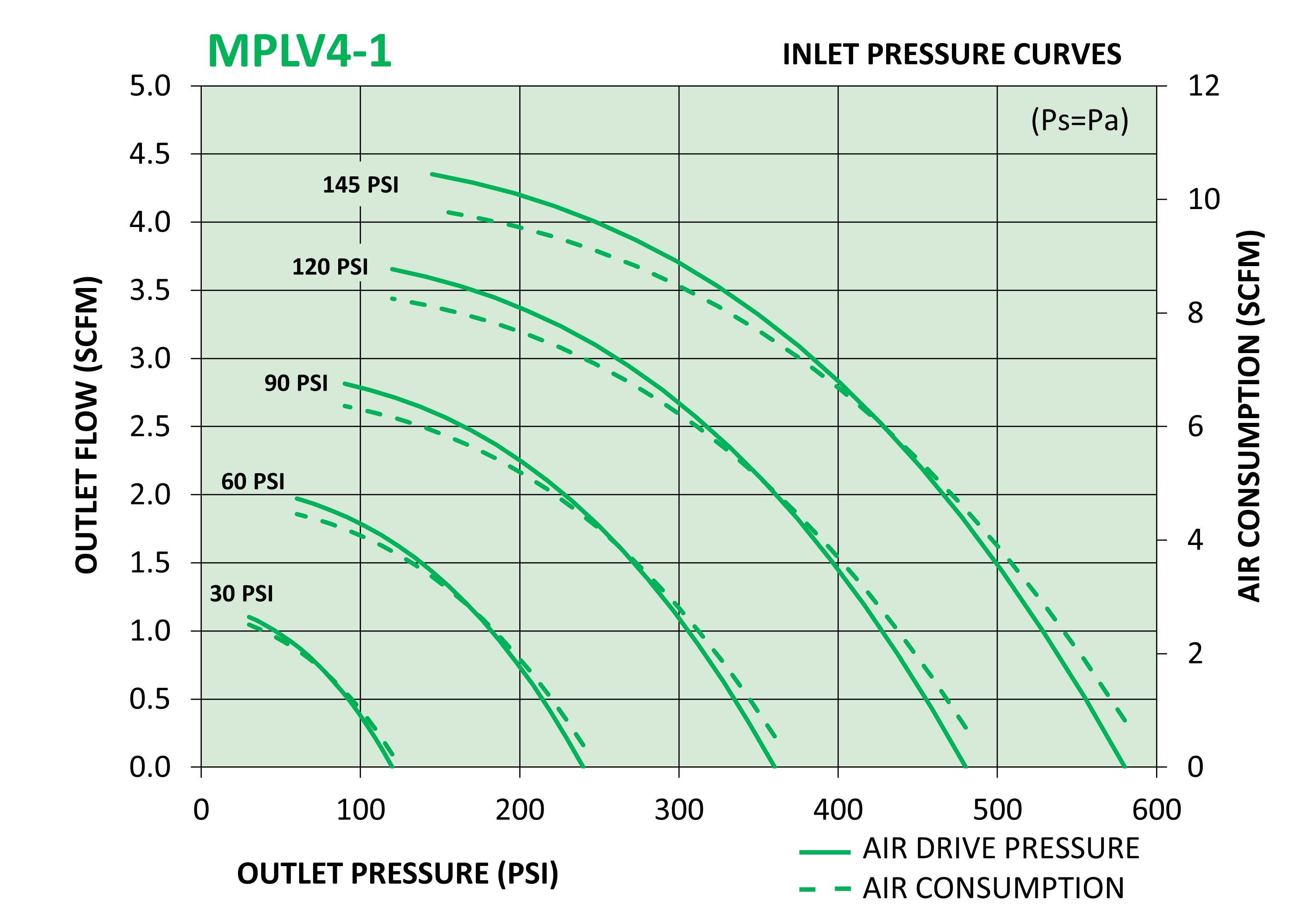

| MPLV4-1 |
4:1 |
30–145 psi |
580 psi |
|

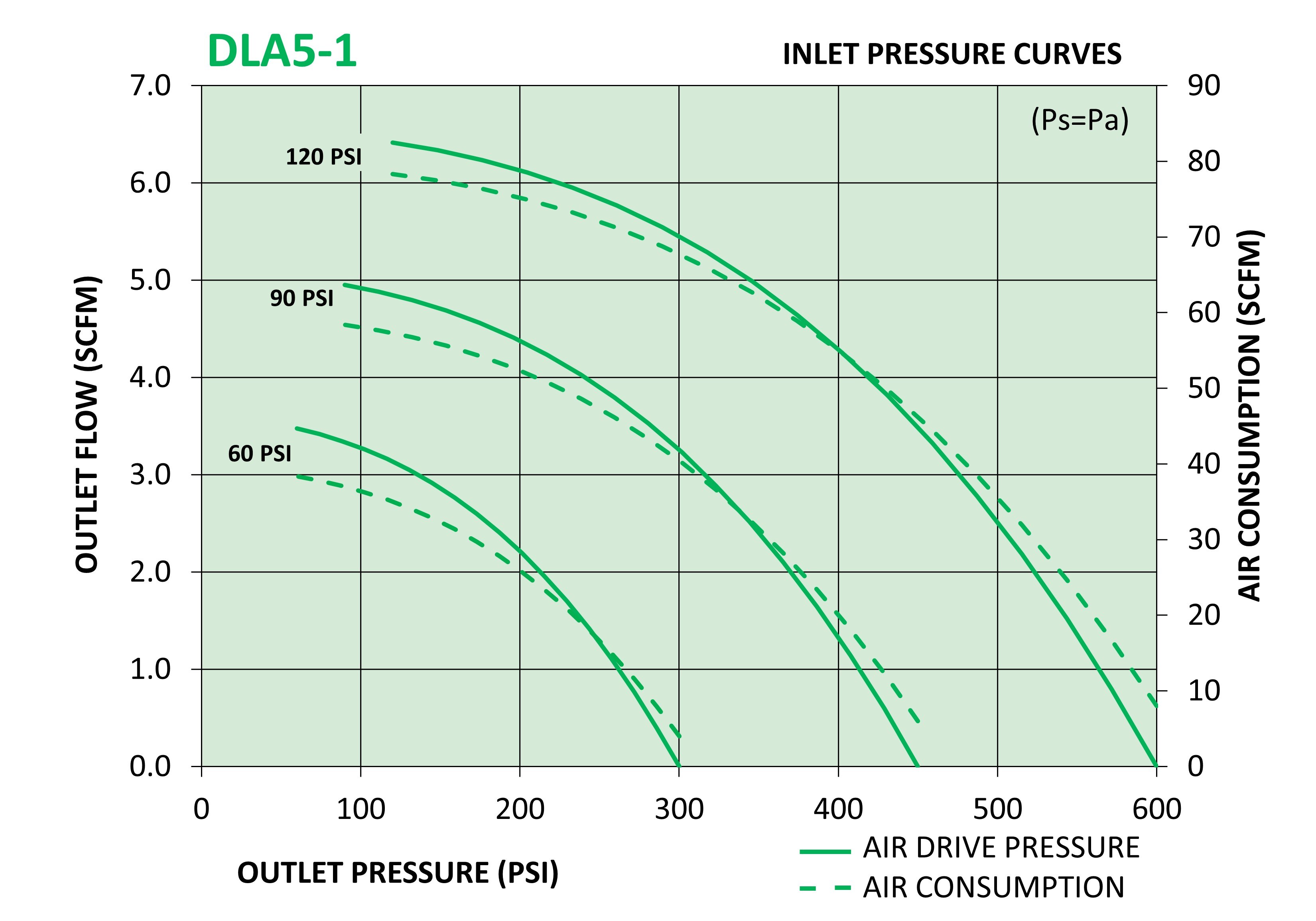

| DLA5-1 |
5:1 |
30–725 psi |
725 psi |
|

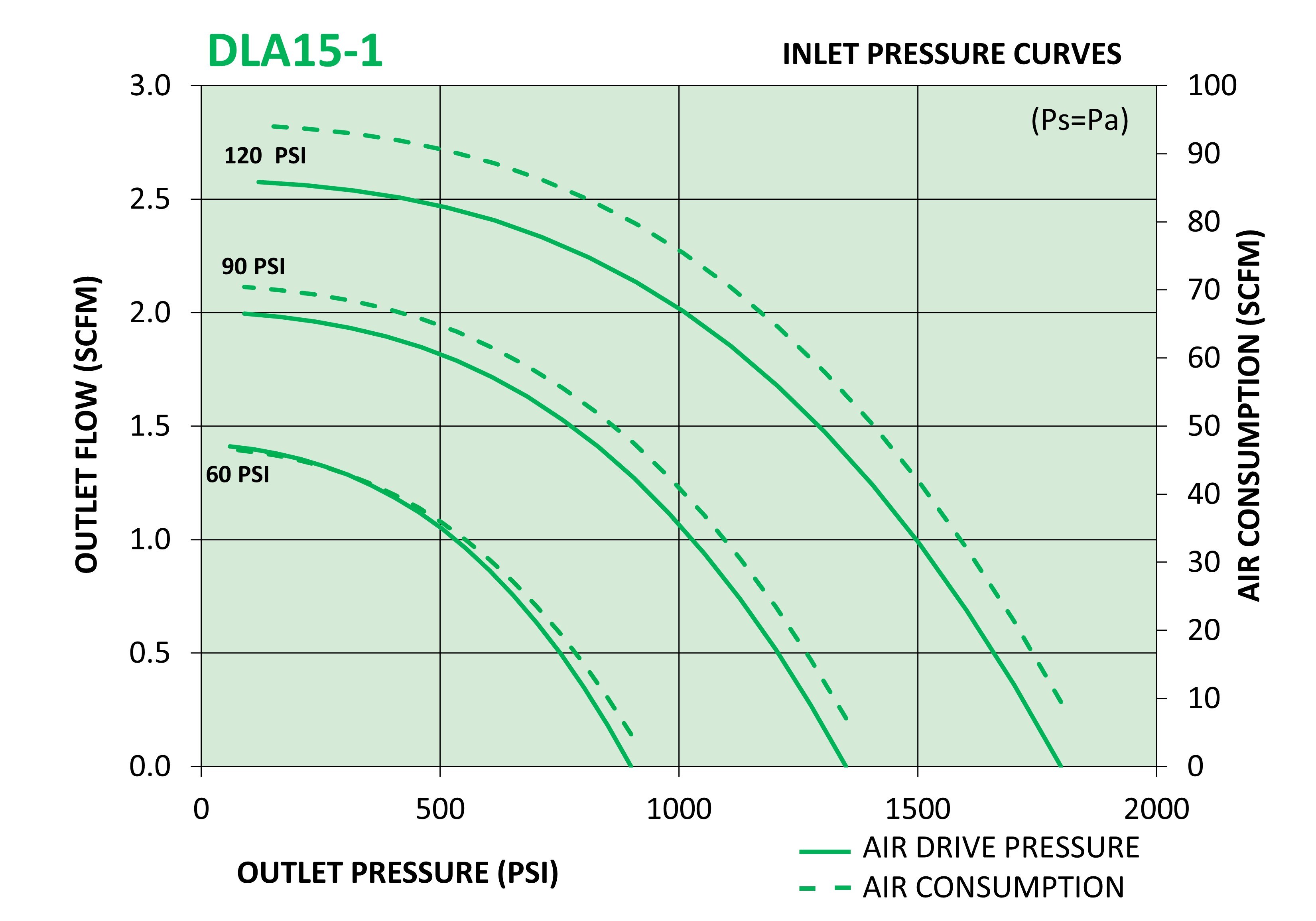

| DLA15-1 |
15:1 |
100–2,175 psi |
2,175 psi |
|

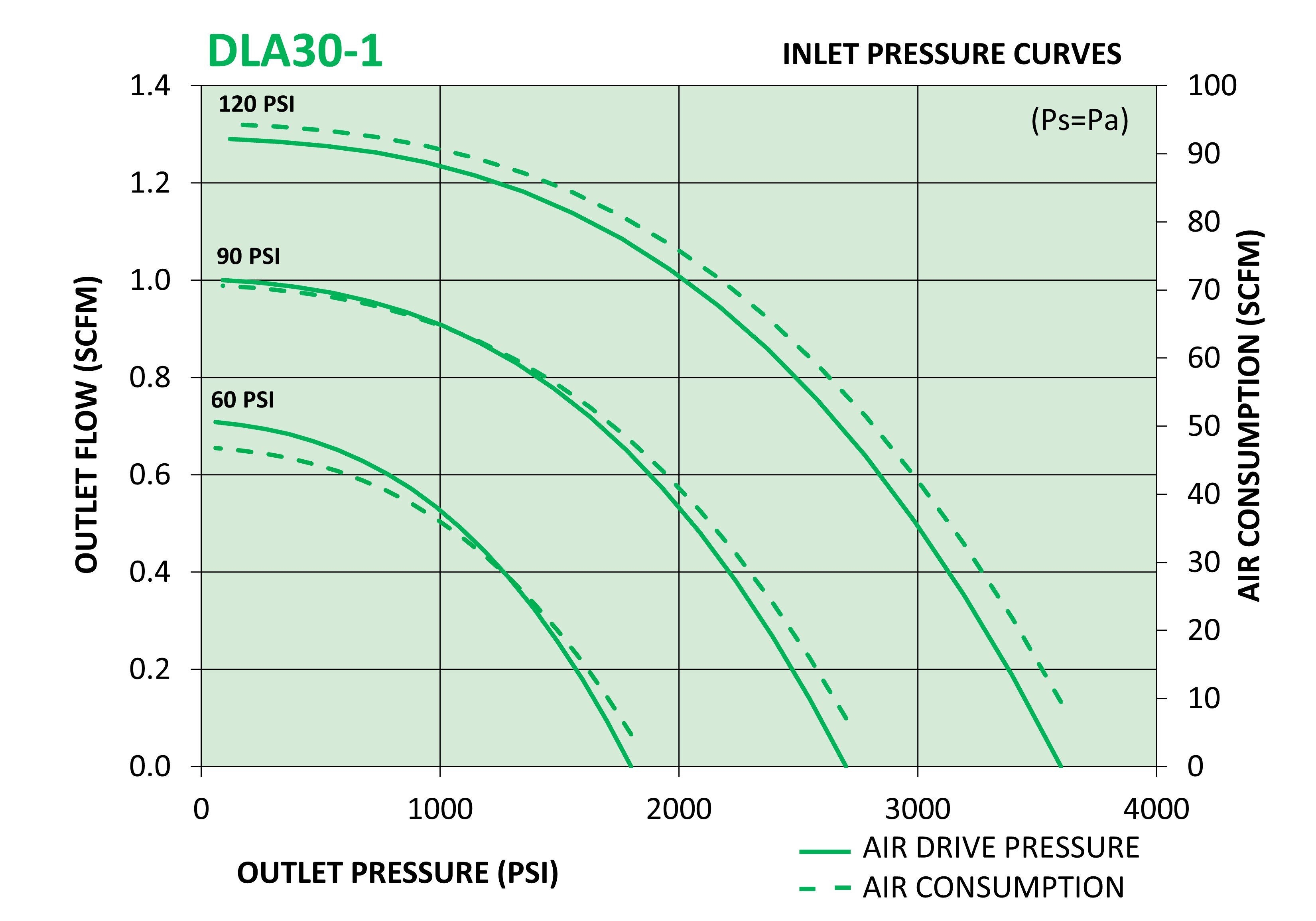

| DLA30-1 |
30:1 |
220–4,350 psi |
4,350 psi |
Single-Stage, Double-Acting Air Amplifiers
For applications requiring both increased pressure and higher flow, Maximator offers single-stage, double-acting models in 2:1, 5:1 and 15:1 pressure ratios.
| Model | Pressure Ratio | Supply Pressure | Max. Rated Pressure | Flow Curve |

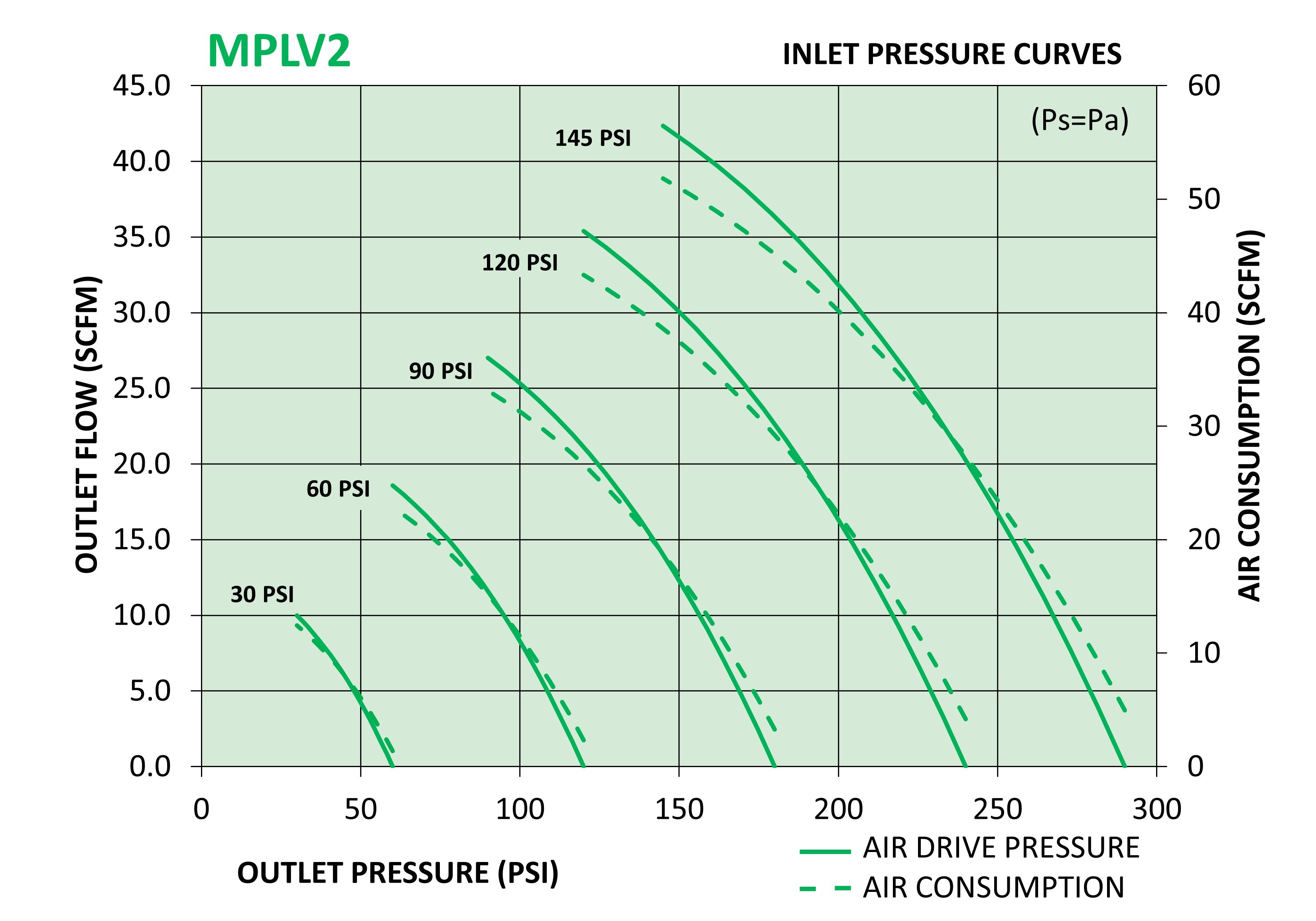

| MPLV2 |
2:1 |
15–150 psi |
300 psi |
|

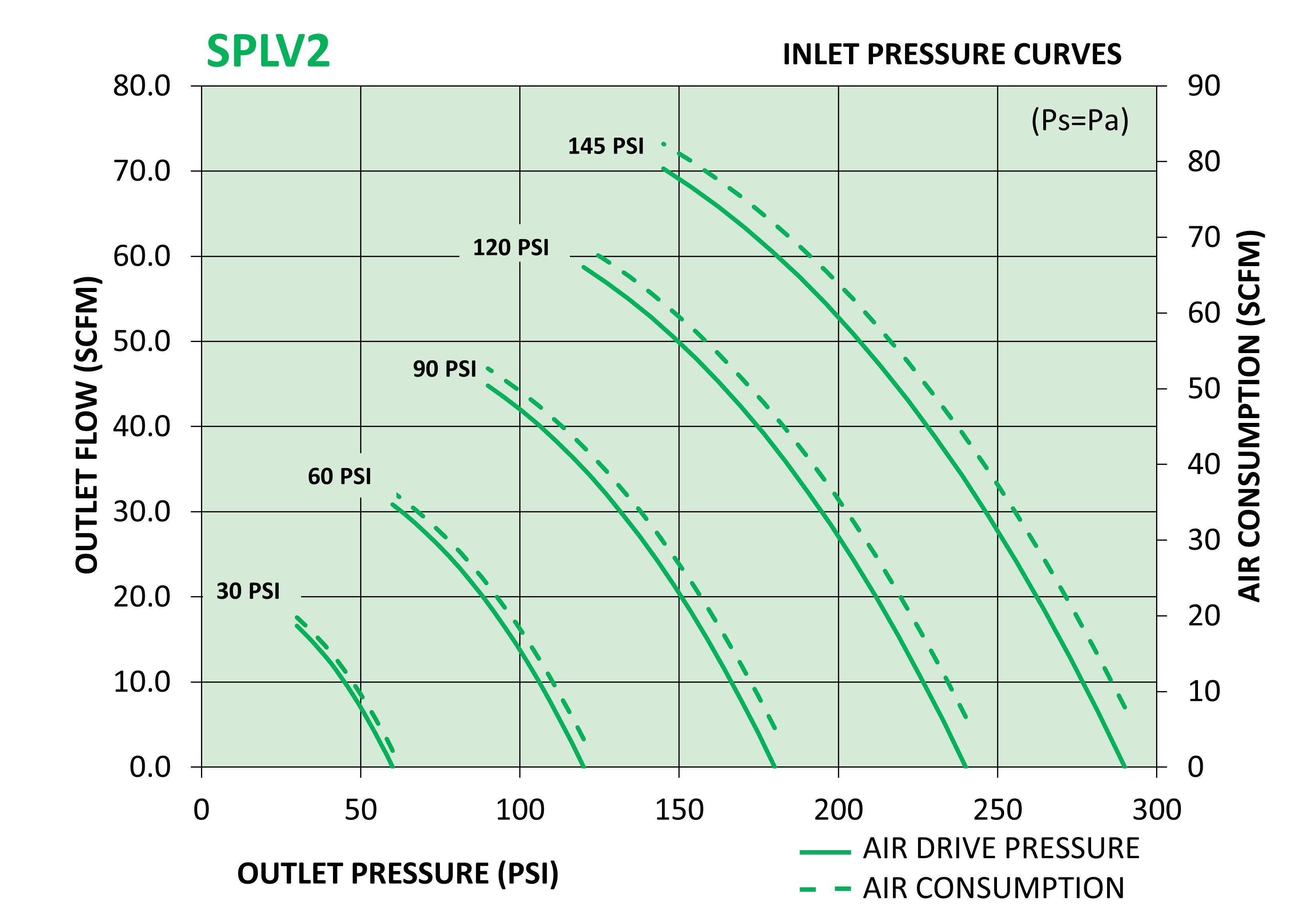

| SPLV2 |
2:1 |
15–150 psi |
300 psi |
|

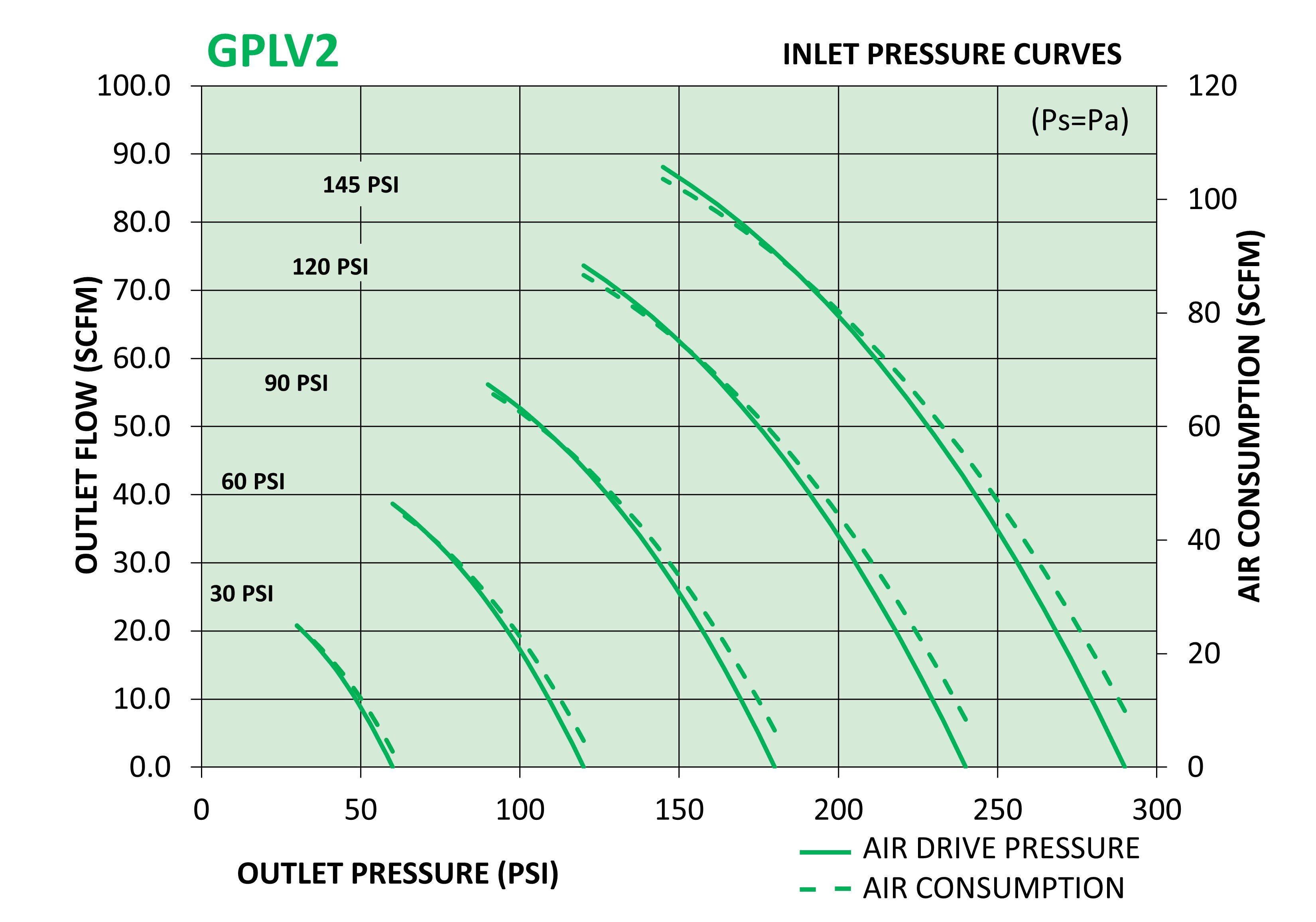

| GPLV2 |
2:1 |
15–150 psi |
300 psi |
|

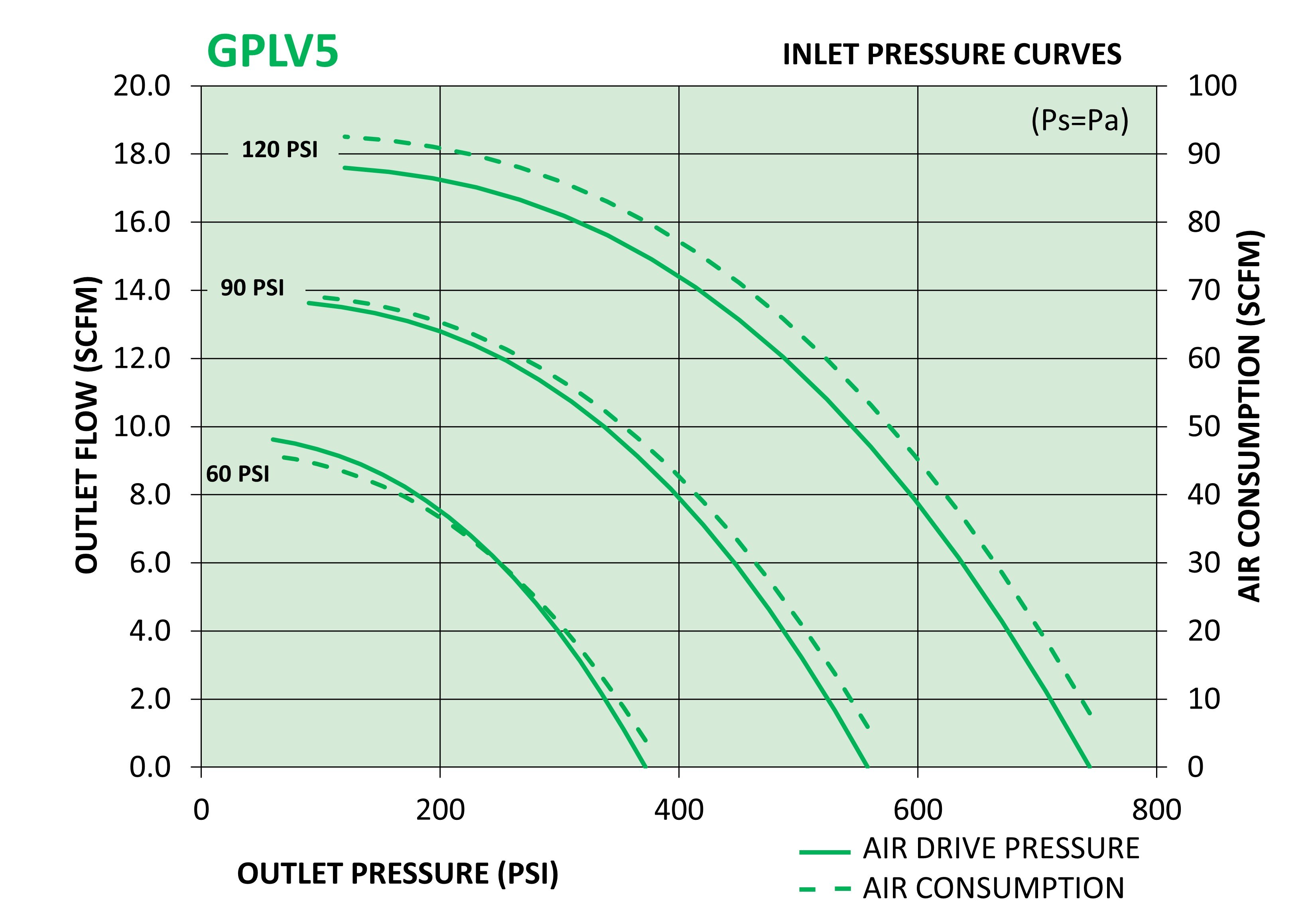

| GPLV5 |
5:1 |
15–870 psi |
870 psi |
|

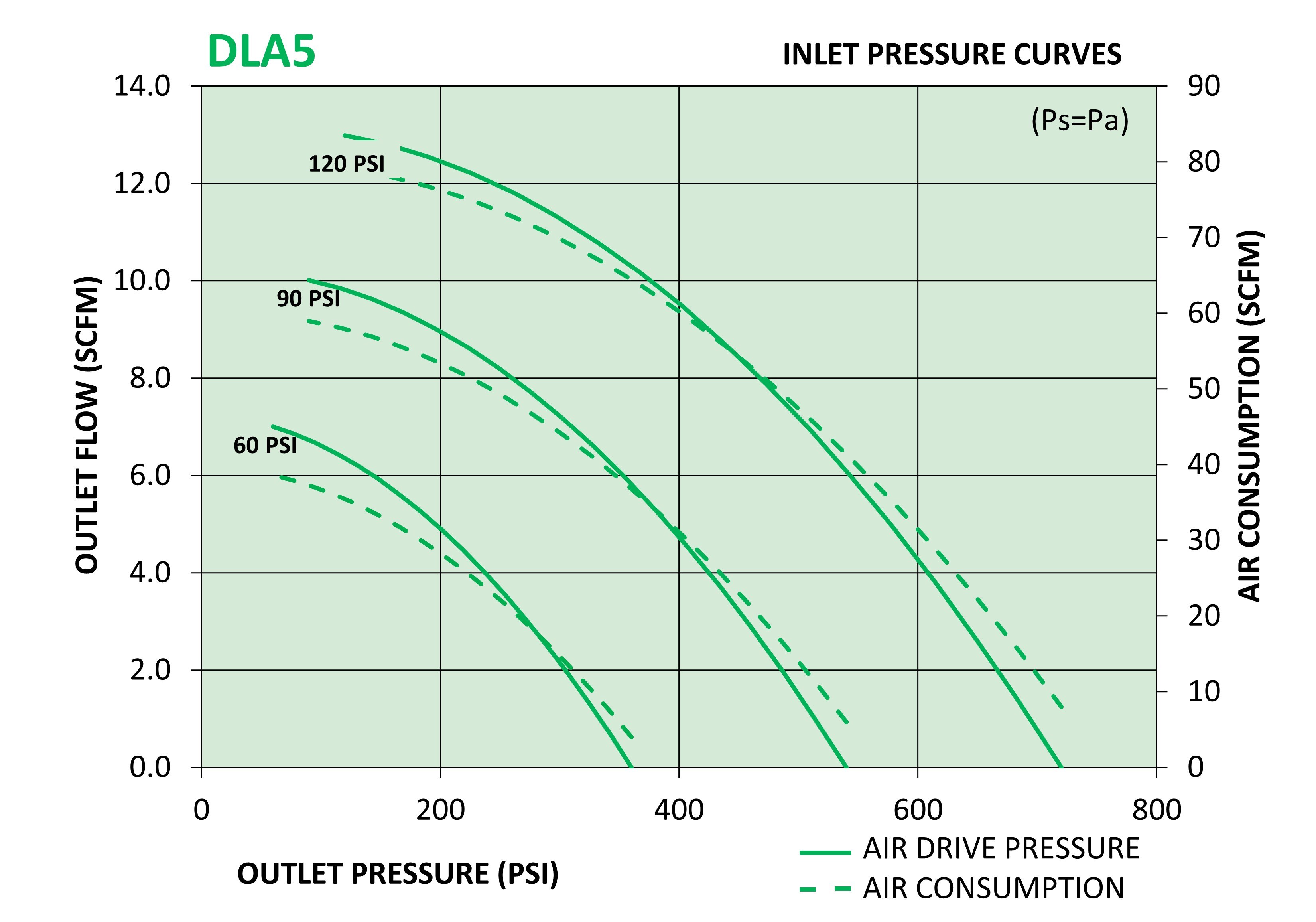

| DLA5 |
5:1 |
30–1,450 psi |
1,450 psi |
|

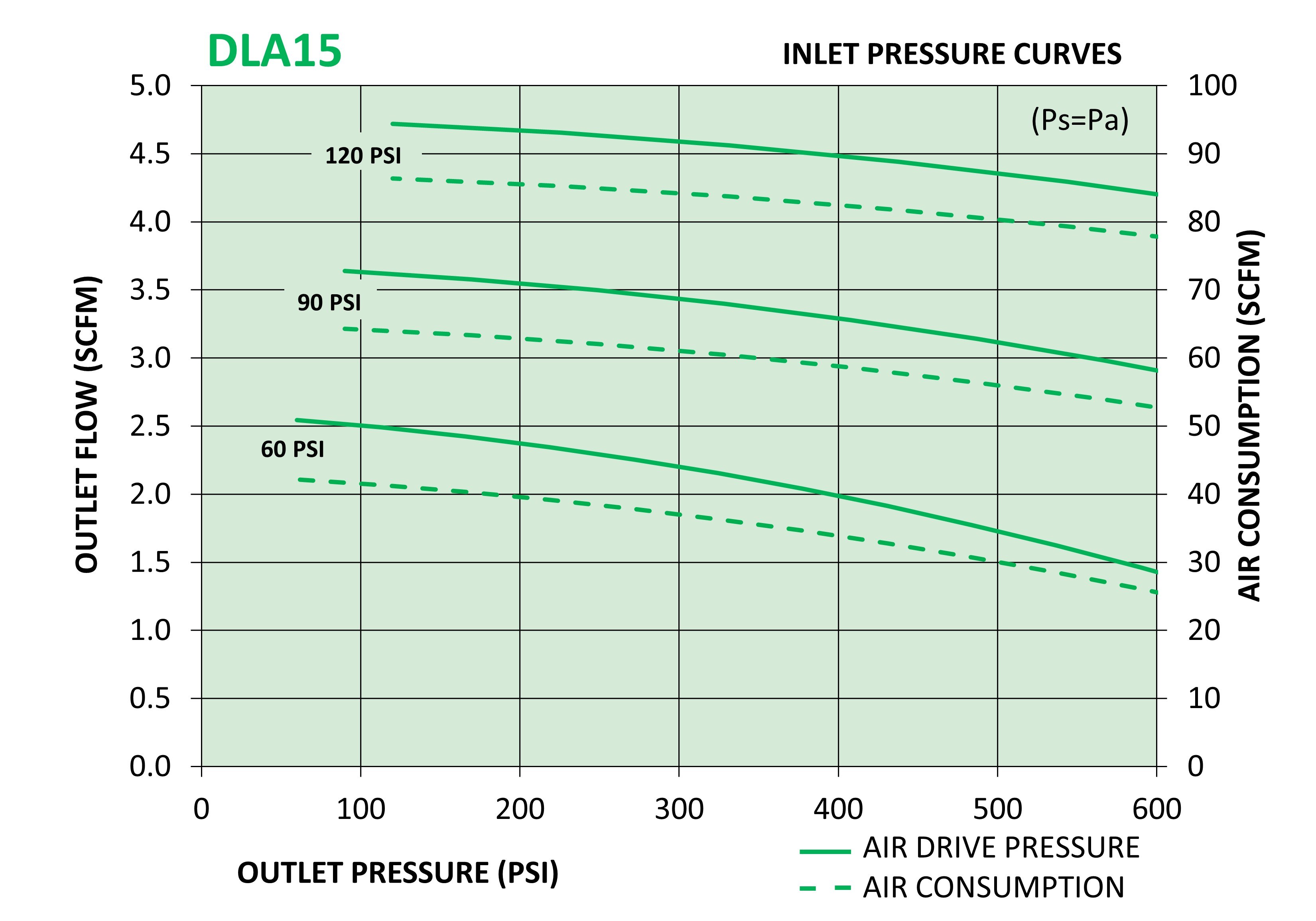

| DLA15 |
15:1 |
100–4,350 psi |
4,350 psi |
Which Air Amplifier Is Right for Your Application?
The appropriate air amplifier depends on several application requirements, including:
• Available supply pressure
• Required outlet pressure
• Required flow
• Pressure ratio
• Single- or double-acting operation
• Application requirements
Maximator US can help you select the appropriate air amplifier based on your pressure, flow and application requirements.
How does an Air Amplifier Work?
Maximator air amplifiers use incoming compressed air to provide both the power required to operate the amplifier and the air being amplified. The amplifier increases air pressure through the relationship between the areas of its pistons.
On DLA models, a larger air piston drives a smaller piston to generate higher pressure. On PLV models, two fixed-area pistons drive a piston of the same area.
Tappet valves at the end of each stroke provide an air-shift signal to a four-way spool valve. The spool valve directs drive air to alternate sides of the drive piston or pistons, producing the reciprocating action of the amplifier. Drive air is exhausted while amplified air is delivered to the outlet.
Once the desired end pressure is reached, the amplifier stalls and stops cycling. If pressure drops approximately 1% from the stall pressure, the amplifier automatically restarts.
Understanding Air Amplifier Pressure Ratios
Maximator air amplifiers are available in pressure ratios of 2:1, 4:1, 5:1, 15:1 and 30:1, depending on the model. The pressure ratio is determined by the piston-area relationship within the amplifier.
The appropriate pressure ratio depends on the available supply pressure and the required outlet pressure. Flow requirements must also be considered when selecting an amplifier.
For example, a higher-pressure ratio can provide greater pressure amplification from a given supply pressure, while the required flow and operating conditions still determine which amplifier is appropriate for the application.
Maximator air amplifiers are available with maximum rated pressures from 300 psi to 4,350 psi, depending on model.
Air Amplifier Features
• Multiple Pressure Ratios
Available in pressure ratios from 2:1 to 30:1 to address different pressure requirements.
• Single- and Double-Acting Configurations
Single-stage, single-acting and single-stage, double-acting models are available for different pressure and flow requirements.
• No Electrical Power Required
Air amplifiers use compressed air for both operation and amplification.
• Automatic Stall and Restart
The amplifier stalls at the desired end pressure and automatically restarts after approximately a 1% drop from stall pressure.
• Compact, Lightweight Designs
Maximator offers compact air amplifier designs for applications where installation space is limited.
• PTFE Seals
PTFE seals are standard features of the air amplifier range.
Air Amplifier Applications
Maximator air amplifiers provide point-of-use pressure boosting for a range of pneumatic and industrial applications where available air pressure is insufficient.
-
Boost Insufficient Shop Air
Increase available air pressure at workstations and equipment when existing plant or shop air does not provide the pressure required.
-
Pneumatic Tools and Machinery
Air amplifiers can increase available pressure for pneumatic tools and pneumatically operated machinery.
-
Pneumatic Cylinders
Provide increased air pressure for applications using pneumatic cylinders.
-
High-Pressure Air Purging
Provide higher-pressure air for high-pressure purging applications.
-
Injection Molding
Boost air pressure for part removal, valve gates and automation equipment used in injection molding.
-
Workbenches and Space-Limited Equipment
Compact air amplifier designs can be used at workbenches and equipment where installation space is limited.
Air Supply Requirements
Proper air quality is important for reliable air amplifier operation. Maximator recommends filtering the air supplied to the amplifier to 5–40 µm and maintaining a dew point between 0°F and 50°F.
Very moist air can wash out the lubricant used on the seals, while very dry air may require a Dry Air Spool.
Maximum air drive pressure: 145 psi
For applications involving very low dew-point air or cold operating environments, Maximator offers a Dry Air Spool option.

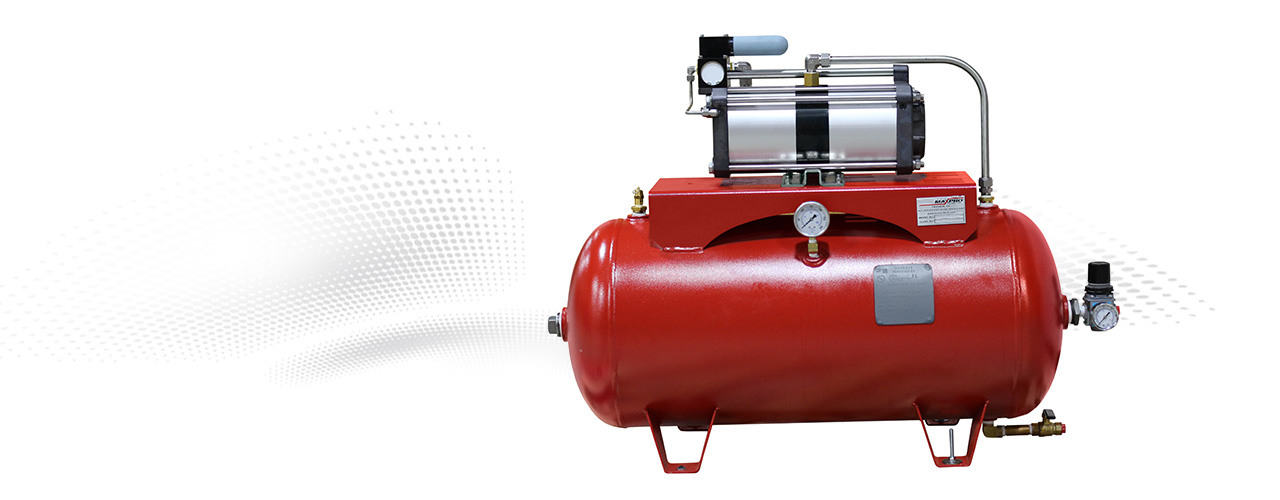

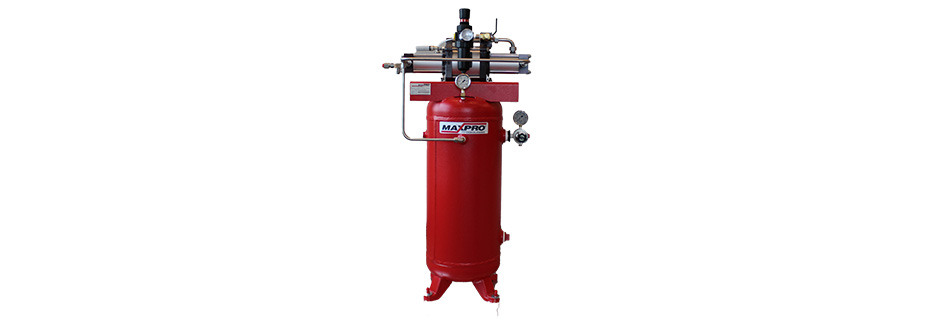

Need a Complete Air Amplifier System?
Maximator US also offers complete air amplifier systems for applications requiring a packaged point-of-use solution.
System configurations can be designed around the required air amplifier, tank size, inlet and outlet connections, pressure rating and flow requirements.
Learn More About Air Amplifier Systems
Need Help Selecting an Air Amplifier?
Tell us your available supply pressure, required outlet pressure, flow requirements and application. Maximator US can help you select the appropriate air amplifier for your requirements.
Air Amplifiers Frequently Asked Questions
An air amplifier is an air-driven pressure booster that increases the pressure of an existing compressed-air supply. Air amplifiers are designed for point-of-use applications where additional air pressure is required for pneumatic equipment, tools, cylinders, machinery or other processes.
An air amplifier uses incoming compressed air to provide both the power required to operate the amplifier and the air being amplified. The pressure increase is generated through the relationship between the areas of the amplifier's pistons. A four-way spool valve controls the reciprocating operation of the amplifier.
Air amplifiers are available in 2:1, 4:1, 5:1, 15:1 and 30:1 pressure ratios, depending on the model. This range allows an amplifier to be selected based on the available supply pressure and required outlet pressure.
Maximum rated pressure varies by model. The Maximator air amplifier range includes models with maximum rated pressures from 300 psi to 4,350 psi. The appropriate model depends on the available supply pressure, required outlet pressure, flow requirements and application.
Single-stage, single-acting and single-stage, double-acting air amplifiers are available for different pressure and flow requirements. Double-acting models are intended for applications requiring both increased pressure and higher flow.
No. Air amplifiers use incoming compressed air to provide both the power required to operate the amplifier and the air being amplified.
Selecting an air amplifier depends on the available supply pressure, required outlet pressure, flow requirements, pressure ratio and application requirements. Multiple models and configurations are available to accommodate different pressure and flow requirements. Maximator US can help you select the appropriate air amplifier for your application.
Maximator recommends filtering the air supplied to the amplifier to 5–40 µm and maintaining a dew point between 0°F and 50°F. Very moist air can wash out seal lubricant, while very dry air may require a Dry Air Spool.
When the desired end pressure is reached, the air amplifier stalls and stops cycling. It automatically restarts when a drop of approximately 1% from the stall pressure is detected.
